Instalare sistem fotovoltaic Ceahlau 5.4 kWp

  • 5.4 kWh
  • 8 Baterii
  • 18 Panouri
  • 1 Invertoare

Sistem instalat cu succes

Informatii sistem:

  • Tip: sistem fotovoltaic off-grid
  • Putere instalata: 5.40 kWp
  • Putere nominala invertor off-grid: 8.00 kVA (unda sinusoidala pura 230V, 50Hz)
  • Putere nominala invertor (pe termen scurt): 16.00 kVA (unda sinusoida pura 230V, 50Hz)
  • Estimare productie fotovoltaic (medie zilnica anuala): 19.00 kWh
  • Estimare productie fotovoltaic in luna decembrie: 8.10 kWh
  • Energie maxima stocata in acumulatori: 21.12 kWh

Componente sistem:

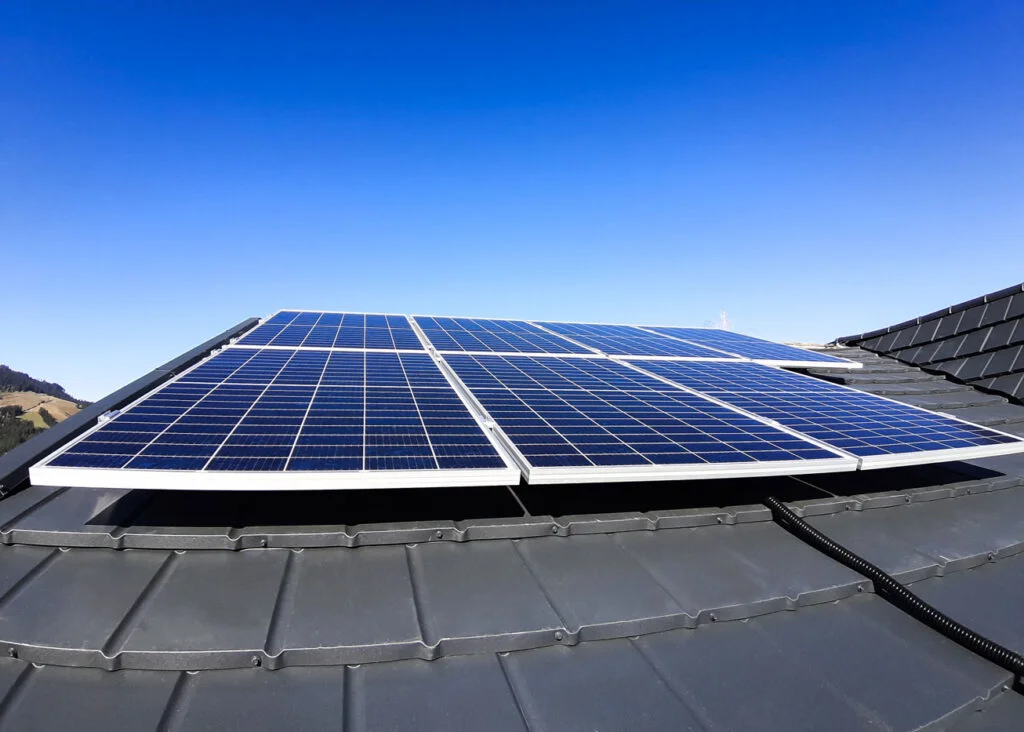

  • Panou fotovoltaic Canadian Solar poli-cristalin 300Wp – 60 cells – 18 bucati
  • Structura de suport pentru panouri (acoperis inclinat)

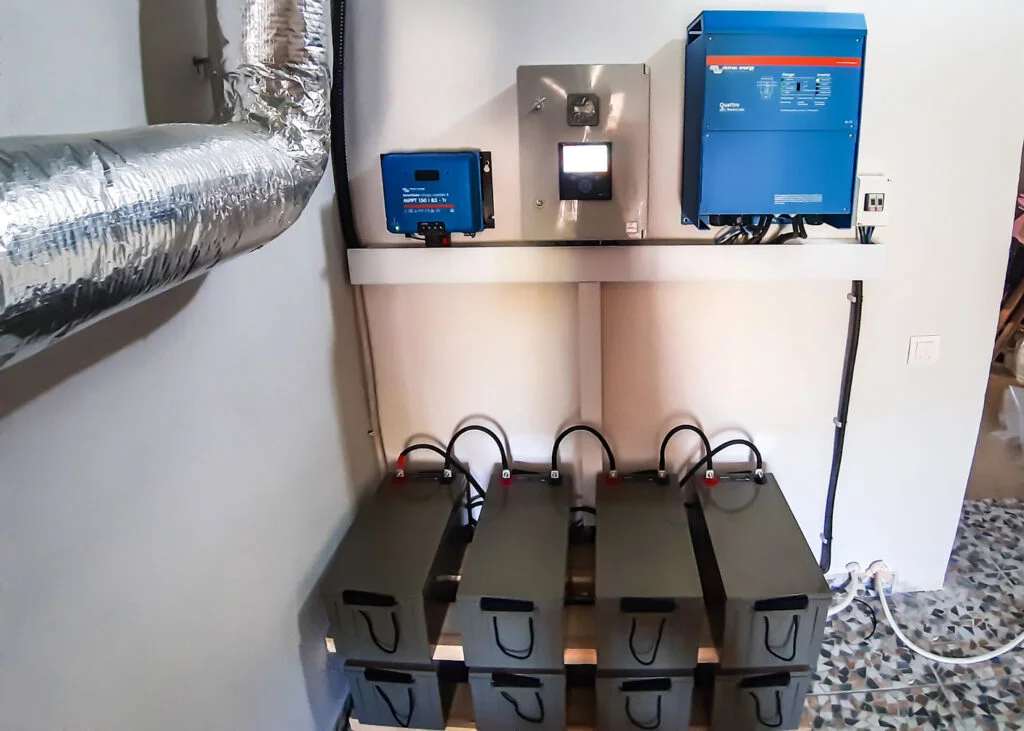

  • Acumulator Victron Energy Deep Cycle AGM 12V/220Ah – 8 bucati

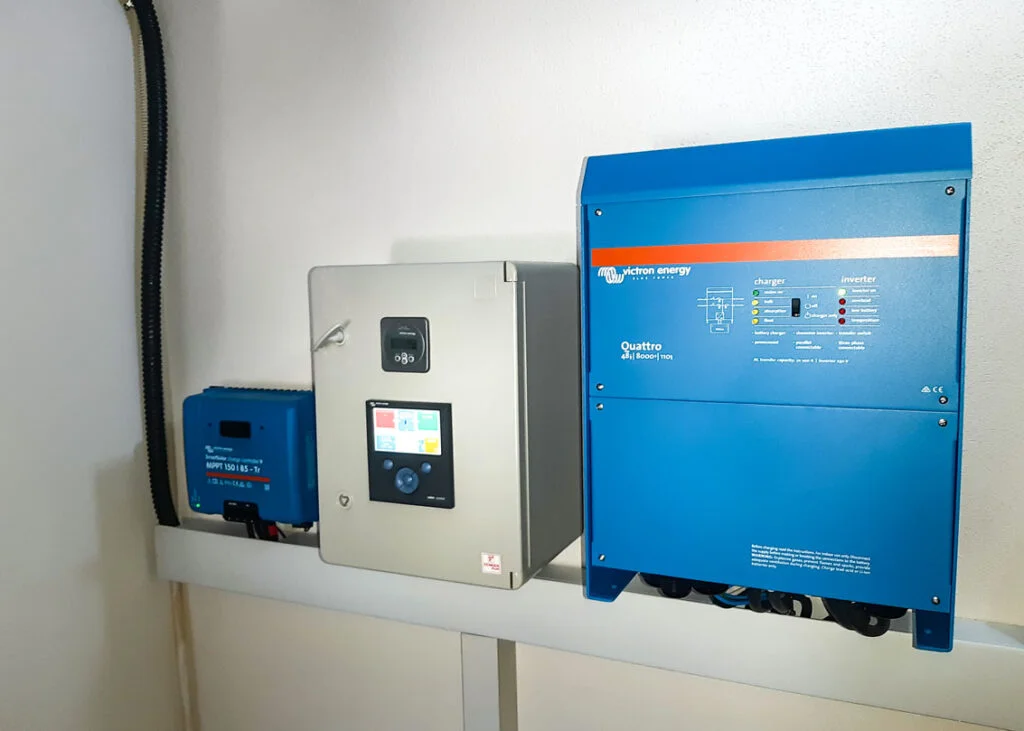

  • Incarcator solar Victron Energy SmartSolar MPPT 150/85-Tr
  • Invertor-incarcator Victron Energy Quattro 48/8000/110-100/100
  • Monitorizare locala Victron Energy BMV700
  • Monitorizare la distanta Victron Energy Color Control GX

Sistemul a fost montat in luna octombrie 2020.
