Informatii sistem:
- Putere instalata: 1.65 kWp
- Putere nominala invertor: 3 kVA (unda sinusoidala pura 230V, 50Hz)
- Putere maxima invertor (pe termen scurt): 6 kVA (unda sinusoidala pura 230V, 50Hz)
- Estimare productie fotovoltaic (medie zilnica anuala): 5.77 kWh
- Estimare productie fotovoltaic (medie in luna decembrie): 2.47 kWh/zi
- Energie maxima stocata in acumulatori: 5.28 kWh
Componente sistem:
- Panou fotovoltaic poli-cristaline Axitec AXIpower 275Wp – 6 bucati
- Structura montaj 9.9m²
- Acumulator Victron Energy Deep Cycle AGM 12V/110Ah – 4 bucati

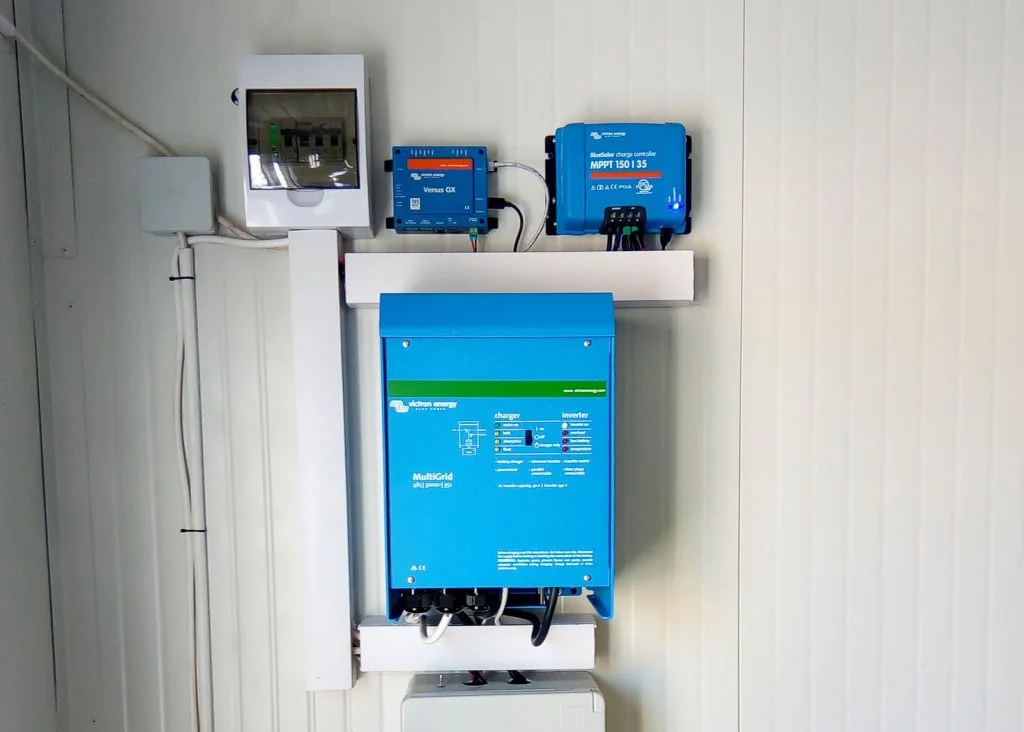

- Invertor – Incarcator off-grid Victron Energy MultiPlus 48V -3000/35-50
- Regulator de incarcare Victron Energy BlueSolar MPPT 150/35
- Monitorizare locala Victron Energy BMV 700
Sistemul fotovoltaic a fost instalat in luna august 2018.

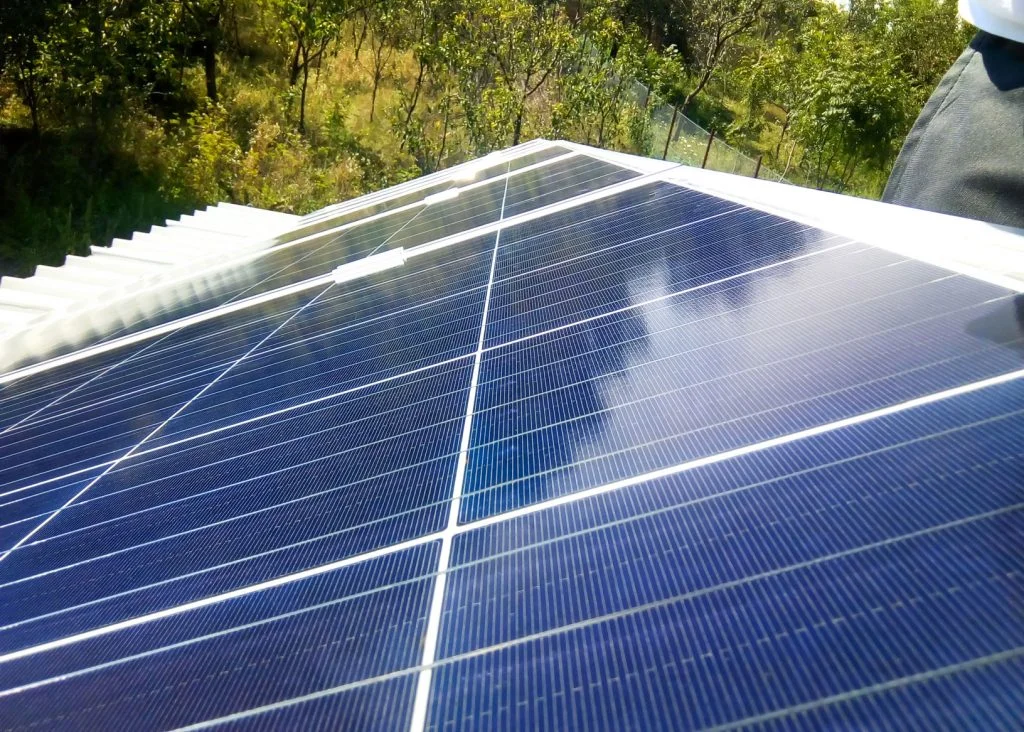

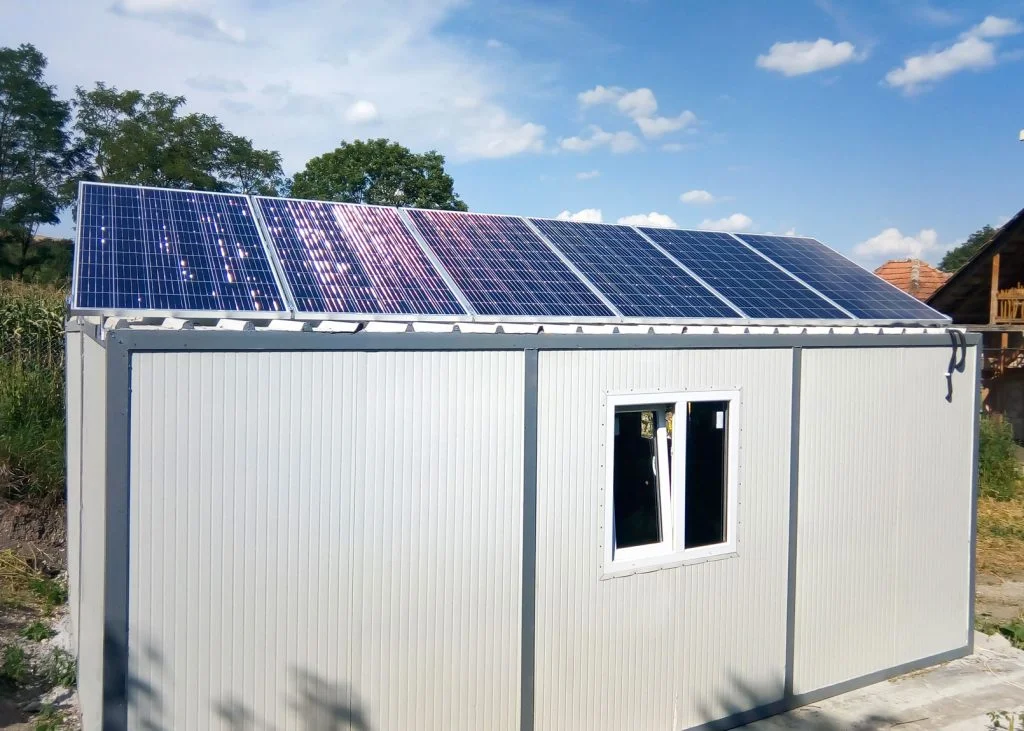

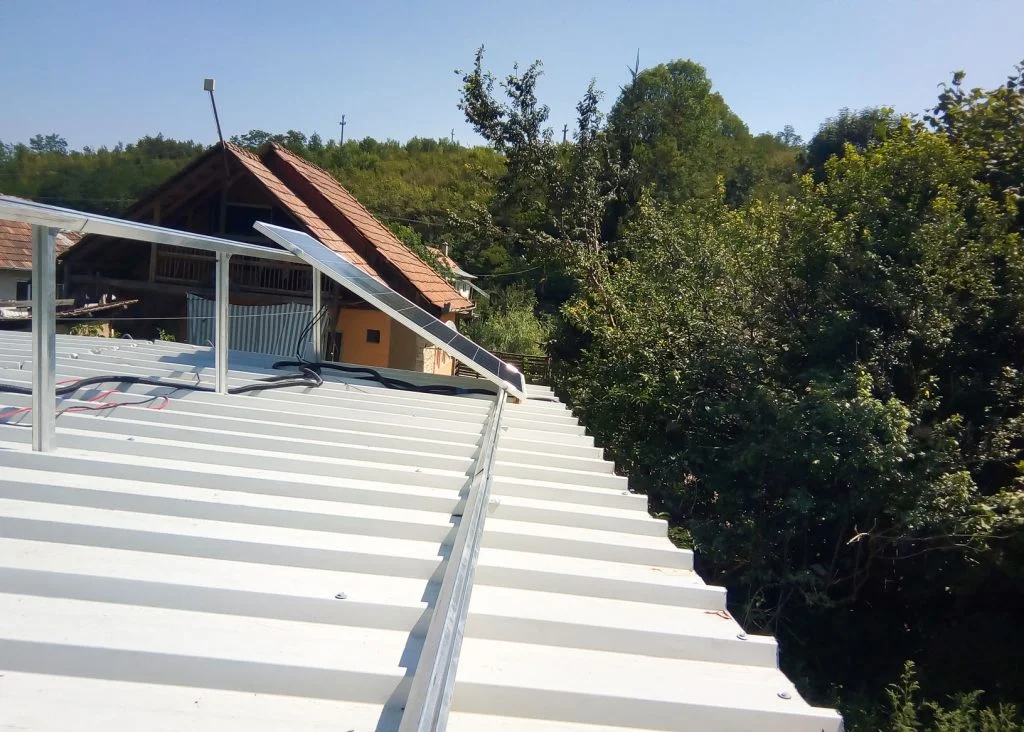

![Instalare Sistem fotovoltaic Satu Lung 1.65 kWp 1 Instalare Sistem fotovoltaic Satu Lung 1.65 kWp](https://csdev.ro/work/carpat/wp-content/uploads/2023/10/IMG_20180814_161412-1024x732-2.jpg)
![Instalare Sistem fotovoltaic Satu Lung 1.65 kWp 2 Instalare Sistem fotovoltaic Satu Lung 1.65 kWp](https://csdev.ro/work/carpat/wp-content/uploads/2023/10/IMG_20181105_114205-1024x732-1.jpg)
![Instalare Sistem fotovoltaic Satu Lung 1.65 kWp 3 Instalare Sistem fotovoltaic Satu Lung 1.65 kWp](https://csdev.ro/work/carpat/wp-content/uploads/2023/10/IMG_20180814_140117-1024x732-1.jpg)
![Instalare Sistem fotovoltaic Satu Lung 1.65 kWp 4 Instalare Sistem fotovoltaic Satu Lung 1.65 kWp](https://csdev.ro/work/carpat/wp-content/uploads/2023/10/IMG_20180814_161506-1024x731-1.jpg)
![Instalare Sistem fotovoltaic Satu Lung 1.65 kWp 5 Instalare Sistem fotovoltaic Satu Lung 1.65 kWp](https://csdev.ro/work/carpat/wp-content/uploads/2023/10/IMG_20180814_125502-1024x732-1.jpg)
